Fixing WifiModem64 Version 1.0

As hinted at earlier, I made a couple of mistakes when designing version 1.0 of the WifiModem64 and they will be fixed in version 1.1.

Still, with some minor manual modifications, those first boards are still usable. In short, RTS must be connected to WeMos D7 instead of D8 for the ESP8266 to boot reliably and the WS2812 LED must be connected to WeMos D5 instead of D0 if you intend to use it.

These are the step-by-step instructions to get WifiModem64 V1.0 on line: Continue reading “Fixing WifiModem64 Version 1.0”

The Modular WifiModem64

I’ve been playing with the ESP8266 since late 2014 and it was love on first sight: so many possible uses for such a small device at such a low price tag. And very early on I thought: wouldn’t it be great to build a WiFi “modem” from this? That shouldn’t be too hard. But I didn’t find the time to pursue the idea then. When I remembered again this summer, I was not surprised but still excited to find that others had had the same idea and hadn’t been as lazy as me.

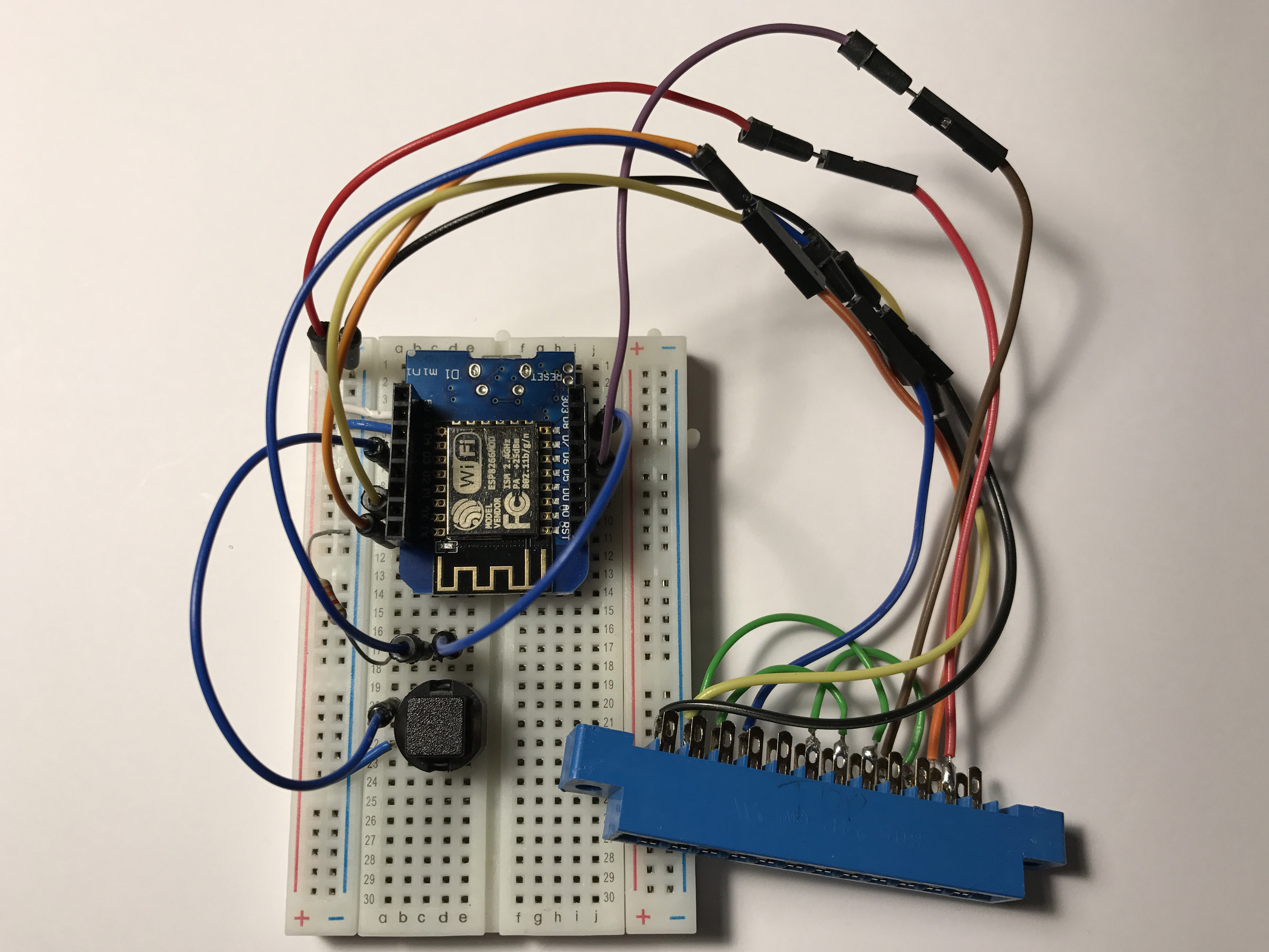

Alwyz’s instructions on how to build such a device couldn’t be easier! I followed them and it worked like a charm. For the next months, my setup then looked like variations of this:

Continue reading “The Modular WifiModem64”
